Available

Highlander (JU-2000E)

Friede Goldman JU-2000E Jackup — 400ft Water Depth, Jurong-Built 2015

400 ft
Water Depth
4,600 HP
Drawworks
NOV ADS 10Q
30,000 ft
Drilling Depth
2015
Year Built
Jurong Shipyard
JU-2000E Jackup Drilling Rig
ABS-Classed Friede Goldman 2000E Jackup — 400ft Rated, Built 2015

A 2015-built Friede Goldman JU-2000E jackup drilling unit rated for 400-foot water depths and 30,000-foot drilling depths. Built at Jurong Shipyard Singapore and ABS-classed, this rig features a full NOV drilling package, Varco top drive, three high-capacity mud pumps, and accommodation for 137 personnel. Engineered for global shelf operations.

Technical Overview

Key Equipment Specifications

🏗️

Drilling Equipment

  • DerrickNOV — 2,100 kips capacity
  • DrawworksNOV ADS 10Q — 3,500 cont / 4,600 HP
  • Top DriveVarco TDX 1000
  • Rotary TableNOV RST 459-3G, 49-1/2 in
  • Mud Pumps3x NOV 14" 2,200 HP Triplex, 7,500 psi
  • Hook Load2,000 kips
  • Racking Capacity24,600 ft DP
🌊

Ratings & Dimensions

  • Water Depth400 ft
  • Drilling Depth30,000 ft
  • Leg Length547 ft
  • Length x Breadth243 ft x 270 ft
  • Cantilever Envelope75 ft x 30 ft
  • Variable Deck Load8,300 kips max
⚙️

Power & Station Equipment

  • Engines6x 2,550 HP each
  • Jacking SystemNOV BLM Rack & Pinion
  • BOPCameron TL 15K psi 18-3/4"
  • Cranes3x Seatrax 150,000 lbs
  • Accommodation137 persons
💧

Storage Capacities

  • Liquid Mud6,170 bbls
  • Fuel3,830 bbls
  • Drill Water9,260 bbls
  • Bulk Storage18,000 cu ft
  • Sack Storage5,000 sacks
Equipment Gallery

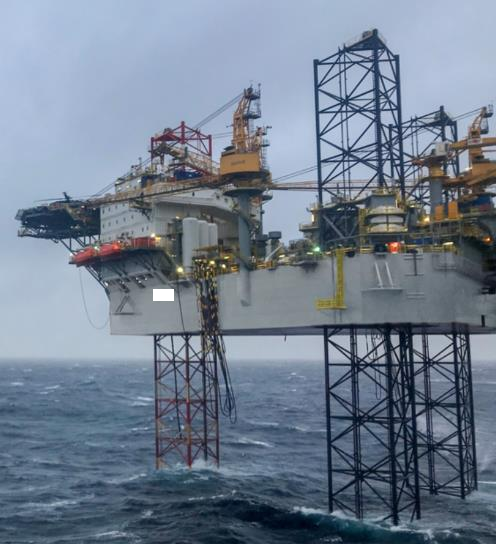

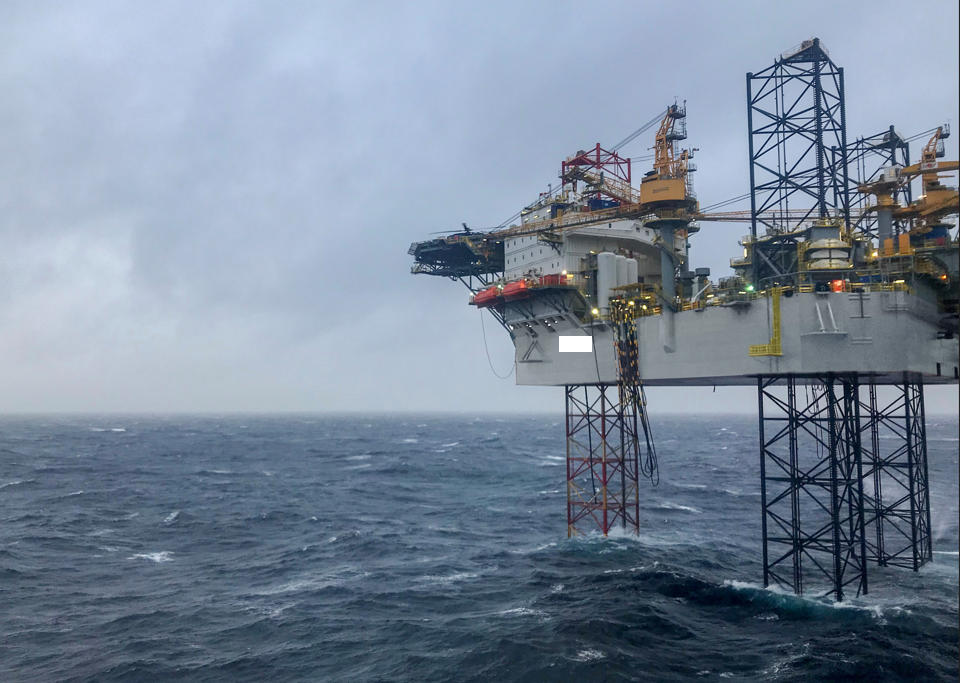

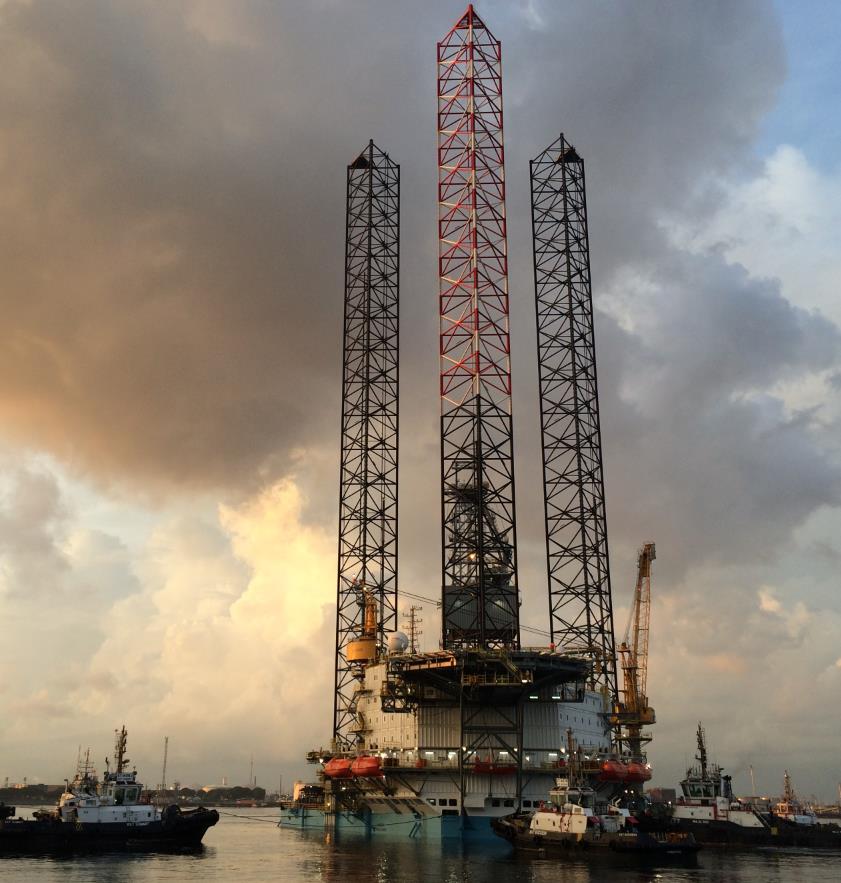

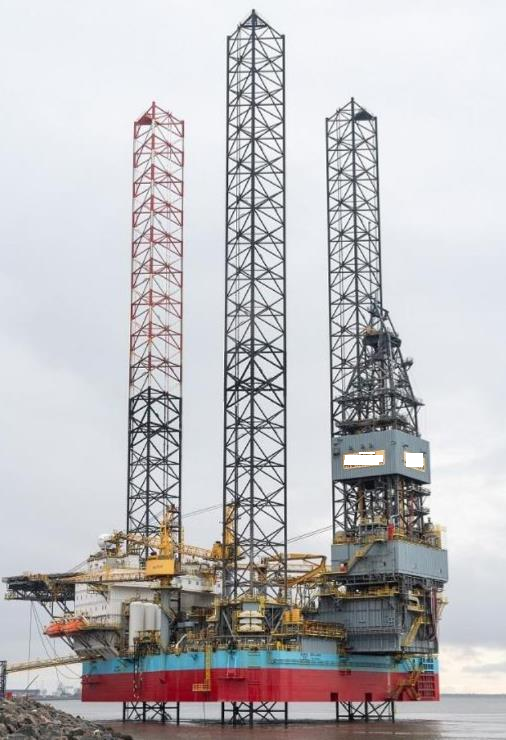

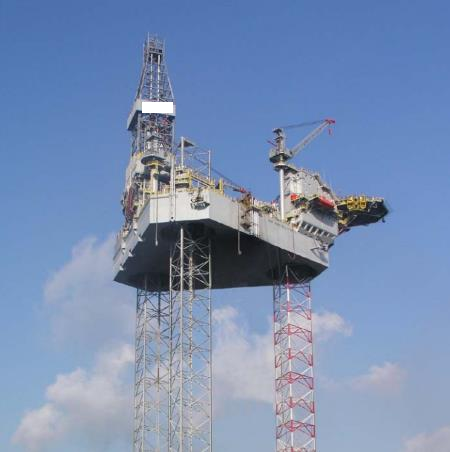

Rig Photos

Capabilities

Key Advantages

01

400-Foot Rated Water Depth

Designed for global shelf operations with 547-ft leg length and variable deck load up to 8,300 kips. ABS A1 classified, SOLAS and Marpol compliant. Isle of Man flagged.

02

High-Performance NOV Drilling Suite

Full NOV drilling package: 4,600 HP ADS 10Q drawworks, Varco TDX 1000 top drive, three 2,200 HP mud pumps at 7,500 psi, and dual NOV iron roughnecks (ST120 + ST160).

03

Large Deck & Accommodation Capacity

137-person quarters, three Seatrax 150,000-lb cranes, and dual PRS4i pipe handling systems. Cantilever reach of 75 ft out and 30 ft transverse for demanding well programs.

Complete Data

Full Equipment Status

General

Rig TypeJackup
Rig DesignFriede Goldman 2000E
BuilderJurong Shipyard Singapore
Year Built2015
ClassificationABS A1 Self Elevating Drilling Unit
MODU Code1989
FlagIsle of Man

Ratings & Dimensions

Water Depth400 ft
Drilling Depth30,000 ft
Length243 ft
Breadth270 ft
Draft (Transit)18 ft
Leg Length547 ft
Leg Spacing156 ft / 150 ft
Cantilever Envelope75 ft x 30 ft
Variable Deck Load8,300 kips max

Drilling Equipment

DerrickNOV — 2,100 kips capacity
DrawworksNOV ADS 10Q 2.05M lbs; 3,500 cont / 4,600 HP
Top DriveVarco TDX 1000
Rotary TableNOV RST 459-3G; 49-1/2 in
Iron Roughneck1x NOV ST120 + 1x NOV ST160
Mud Pumps3x NOV 14" 2,200 HP Triplex 7,500 psi
Hook Load2,000 kips
Setback Capacity950,000 lbs
Racking Capacity24,600 ft DP
BOPCameron TL 15K psi 18-3/4" with Cameron DL Annular 10K psi
Control SystemCameron
DiverterGE Vetco KFDS 1,000 psi
Shale Shakers3x NOV Axion AX1 + 3x NOV Brandt VSM 300
Pipe Handling2x NOV PRS4i

Power & Utilities

Engines6x 2,550 HP each
Jacking SystemNOV BLM Rack & Pinion
Cranes3x Seatrax 150,000 lbs
Quarters Capacity137 persons

Storage Capacities

Mud Pits3,830 bbls
Liquid Mud6,170 bbls
Fuel3,830 bbls
Drill Water9,260 bbls
Brine Storage1,723 bbls
Base Oil1,723 bbls
Bulk Storage18,000 cu ft
Sack Storage5,000 sacks
